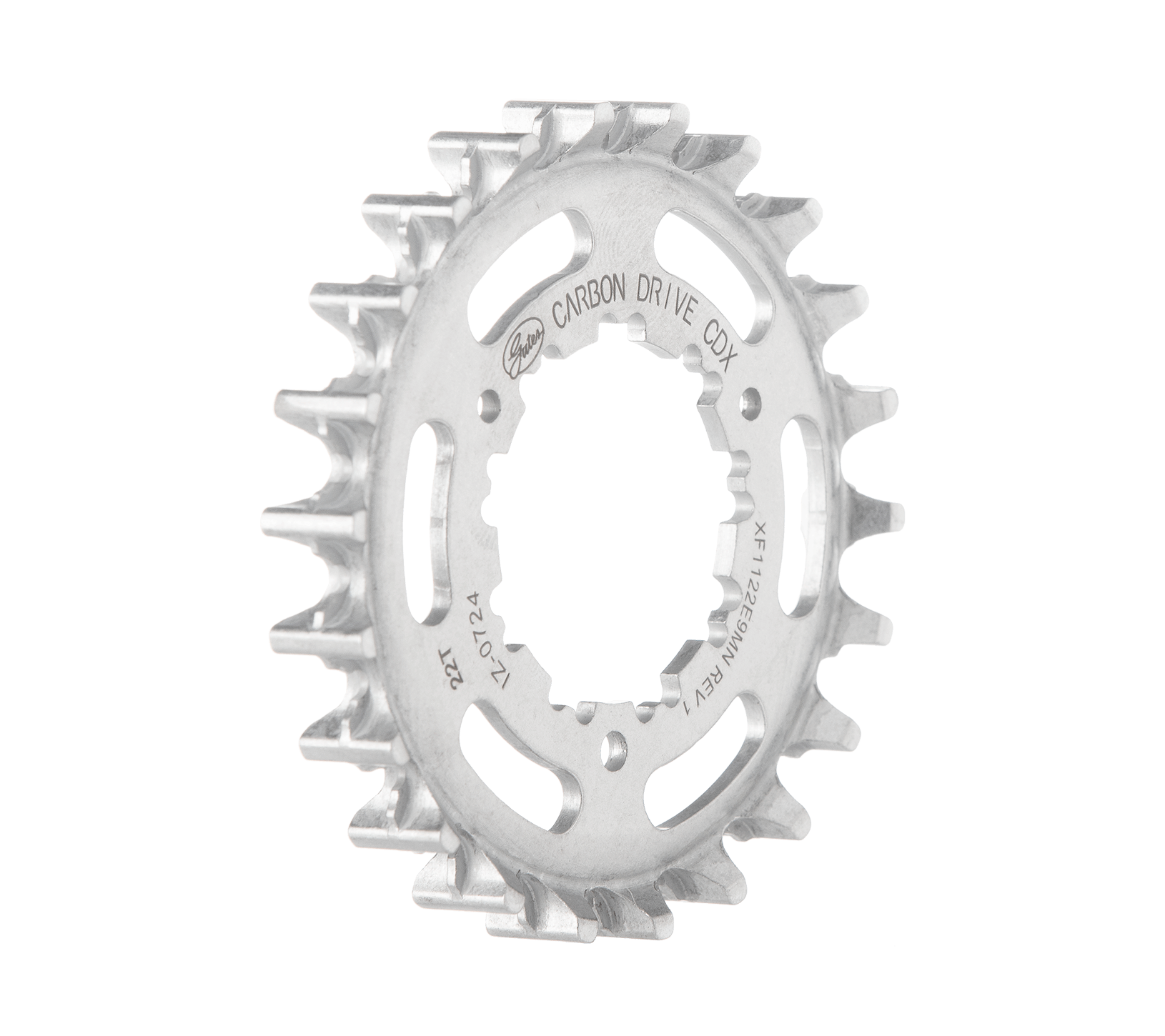

Gates CDX Fin Line Rear Sprocket 22t Enviolo 9-Spline

Unleash Unmatched Durability and Precision for Your E-Bike Drivetrain.

Conquer daily rides with a rear sprocket engineered to withstand the toughest demands. The Gates CDX Fin Line rear sprocket delivers exceptional strength and noise reduction through a redesigned mounting system that replaces the traditional retaining clip with a secure screw-on lock ring. Optimized for Enviolo 9-Spline hubs, it features the proven Mudsports tooth profile for maximum performance and longevity. The patented CenterTrack design with a central guiding flange keeps your belt perfectly aligned, eliminating slippage even in harsh conditions.

Key Features

• Enhanced Mounting System: Screw-on lock ring for superior attachment and reduced noise.
• Mudsports Tooth Profile: Engineered for optimal grip and durability under heavy loads.
• CenterTrack Design: Central guiding flange prevents belt derailment.
• Daily Use Ready: Built to endure rigorous e-bike and trekking bike conditions.
• Noise Reduction: Significantly quieter operation in challenging environments.

Technical Specifications

• Material: Aviation-grade wear-resistant stainless steel.
• Color: Black.
• Design: Finline with central guiding flange.
• Pitch: 11 mm.
• Compatibility Note: Not compatible with hubs from model year 2023 or older.
